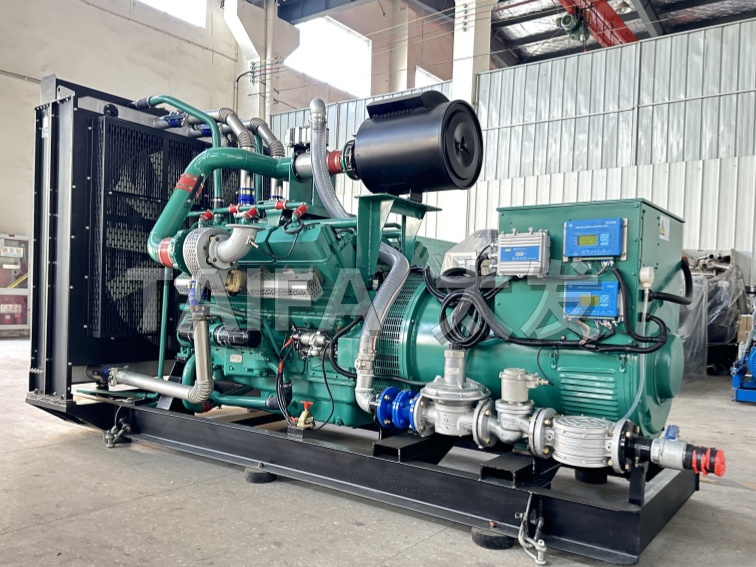

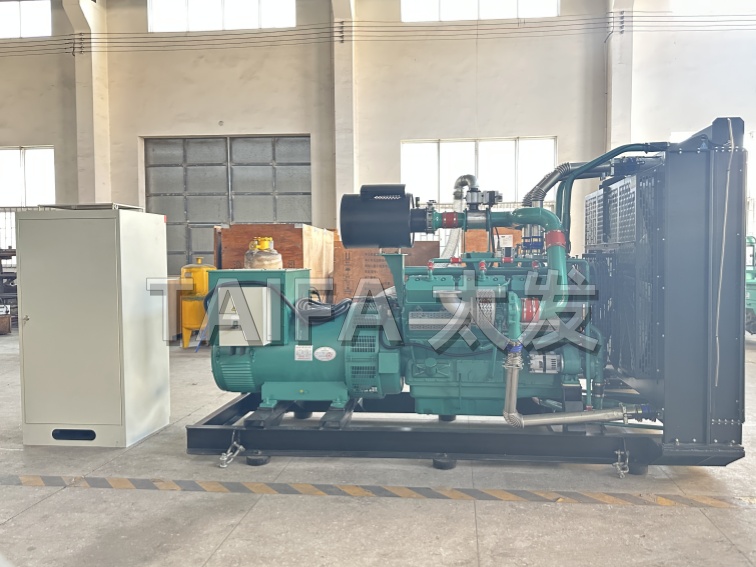

Supply standard configuration of biogas generator set:
● Heat sink * Muffler ● Unit user manual ● Connecting elbow * Unit product quality certificate ● Steel structure chassis * Battery and cable ● Control screen ● MCCB air protection switch ● Shock absorber gasket
Biogas generator set optional:
● Automatic conversion cabinet ● Automatic parallel cabinet ● Container type generator set ● Low noise type generator set ● Self starting screen ● Remote microcomputer interface ● Spare parts for 500-1000 hours of operation
Advantages of Taifa Service: Establishing a 24-hour comprehensive service hotline, ready to provide services to customers at any time. Upon receiving a customer repair report, complete the dispatch work within 1 hour and provide feedback on the dispatch status to the customer at any time. Time sensitive service, available within 4 hours within the city, 6 hours within 100 kilometers, and 12 hours outside of 100 kilometers. Upon arrival at the scene, repair time is required. Generally, faults are repaired within 24 hours, while other faults are repaired within 72 hours.
| Model | Unit power | Gas turbine model | No. of cylinders | Bore/Stroke (MM) | Gas consumption rate MJ/kw·h | Length×Width×Height (MM) | Weight (KG) | |
| KW | KVA | |||||||
| TFB8GF | 8 | 10 | TFV77 | V2 | 77/66 | ≤11 | 930*500*580 | 150 |
| TFB10GF | 10 | 12.5 | TFV78 | V2 | 78/70 | ≤11 | 950*640*910 | 195 |
| TFB12GF | 12 | 15 | TFV90 | V2 | 90/78.5 | ≤11 | 1100*700*970 | 211 |
| TFB15GF | 15 | 18.75 | TF465 | 4 | 65/72 | ≤11 | 1130*700*860 | 280 |
| TFB20GF | 20 | 25 | TF4100 | 4 | 100/115 | ≤11 | 1600*680*1000 | 650 |
| TFB24GF | 24 | 30 | TF4100Z | 4 | 100/115 | ≤11 | 1600*700*1000 | 680 |
| TFB30GF | 30 | 37.5 | TF4102 | 4 | 102/125 | ≤11 | 1800*750*1300 | 760 |
| TFB40GF | 40 | 50 | TF4105 | 4 | 105/135 | ≤11 | 1800*750*1300 | 780 |
| TFB50GF | 50 | 62.5 | TF4105Z | 4 | 105/135 | ≤11 | 1800*780*1350 | 800 |
| TFB60GF | 60 | 75 | TF6105 | 6 | 105/135 | ≤11 | 2350*730*1500 | 1100 |
| TFB75GF | 75 | 93.75 | TF6105Z | 6 | 105/135 | ≤11 | 2500*730*1500 | 1500 |
| TFB80GF | 80 | 100 | TF6105Z | 6 | 105/135 | ≤11 | 2500*730*1500 | 1500 |
| TFB90GF | 90 | 112.5 | TF6105ZD | 6 | 105/135 | ≤11 | 2500*730*1500 | 1500 |
| TFB100GF | 100 | 125 | TF6113 | 6 | 113/125 | ≤11 | 2500*730*1500 | 1750 |
| TFB120GF | 120 | 150 | TF6135 | 6 | 135/150 | ≤11 | 3000*1000*1700 | 1800 |
| TFB150GF | 150 | 187.5 | TF6126 | 6 | 126/130 | ≤11 | 3000*1000*1700 | 1800 |
| TFB160GF | 160 | 200 | TF6135Z | 6 | 135/150 | ≤11 | 3100*1100*1700 | 1900 |
| TFB180GF | 180 | 225 | TF6126Z | 6 | 126/155 | ≤11 | 3100*1100*1700 | 2200 |
| TFB200GF | 200 | 250 | TF6135ZD | 6 | 135/155 | ≤11 | 3100*1100*1700 | 2200 |
| TFB220GF | 220 | 275 | TF6138 | 6 | 138/168 | ≤11 | 3200*1200*1800 | 2500 |
| TFB250GF | 250 | 312.5 | TF6138Z | 6 | 138/168 | ≤11 | 3200*1200*1800 | 2500 |
| TFB280GF | 280 | 350 | TF6135ZD | 6 | 135/150 | ≤11 | 3500*1750*1980 | 3500 |
| TFB300GF | 300 | 375 | TF6135ZLD | 6 | 135/150 | ≤11 | 3500*1750*1980 | 3500 |
| TFB320GF | 320 | 400 | TF12V135 | 12V | 135/150 | ≤11 | 3500*1750*1980 | 3500 |
| TFB350GF | 350 | 437.5 | TF12V138 | 12V | 138/158 | ≤11 | 3500*1800*2000 | 3600 |
| TFB380GF | 380 | 475 | TF12V138Z | 12V | 138/158 | ≤11 | 3500*1620*2000 | 3800 |
| TFB400GF | 400 | 500 | TF12V138ZD | 12V | 138/158 | ≤11 | 3500*1620*2000 | 3900 |
| TFB450GF | 450 | 562.5 | TF12V138ZLD | 12V | 138/165 | ≤11 | 3600*1800*2150 | 4200 |
| TFB500GF | 500 | 625 | TF6180 | 6 | 180/215 | ≤11 | 4400*1700*2200 | 6800 |
| TFB550GF | 550 | 687.5 | TF6186 | 6 | 186/215 | ≤11 | 4500*1850*2250 | 7500 |
| TFB600GF | 600 | 750 | TF6200 | 6 | 200/210 | ≤11 | 4600*1630*2250 | 7500 |
| TFB650GF | 650 | 812.5 | TF12V152 | V12 | 152/180 | ≤11 | 4900*2100*2500 | 7900 |
| TFB700GF | 700 | 875 | TF12V152D | V12 | 152/180 | ≤11 | 4900*2100*2500 | 8000 |
| TFB750GF | 750 | 937.5 | TF12V152ZD | V12 | 152/180 | ≤11 | 4900*2100*2500 | 8100 |
| TFB800GF | 800 | 1000 | TF12V152ZLD | V12 | 152/180 | ≤11 | 4900*2100*2500 | 8150 |
| TFB900GF | 900 | 1125 | TF12V170 | V12 | 170/210 | ≤11 | 5450*2200*2520 | 10200 |
| TFB1000GF | 1000 | 1250 | TF12V170Z | V12 | 170/210 | ≤11 | 5450*2200*2520 | 11000 |
| TFB1100GF | 1100 | 1375 | TF12V170ZD | V12 | 170/210 | ≤11 | 5450*2200*2520 | 11500 |
| TFB1200GF | 1200 | 1500 | TF16V190 | V16 | 190/215 | ≤11 | 8600*2870*3000 | 20000 |
| TFB1500GF | 1500 | 1875 | TF16V185 | V16 | 185/200 | ≤11 | 8700*1850*2450 | 15000 |
| TFB1800GF | 1800 | 2250 | TF20V190 | V20 | 190/255 | ≤11 | 9600*2870*3000 | 21200 |
| TFB2000GF | 2000 | 2500 | TF20V190 | V20 | 190/255 | ≤11 | 9600*2870*3000 | 21500 |
| TFB3000GF | 3000 | 3750 | TF16V280 | V16 | 280/285 | ≤11 | 9200*2300*3500 | 49000 |
Standard unit 50HZ, 230/400V, power factor 0.8, three-phase four wire system. 60Hz and high-voltage units can be customized according to customer requirements.

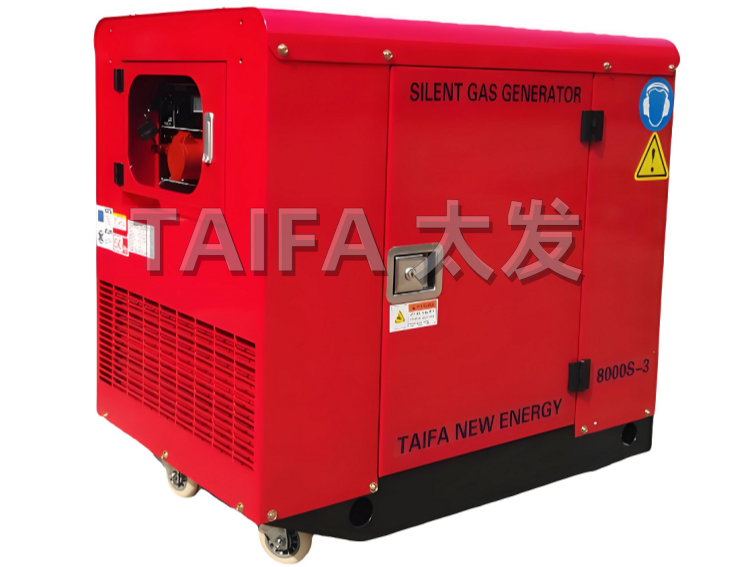

Optional options include soundproof speakers, containers, mobile trailers, and waste heat recovery systems.
The interpretation rights of this type of music chart belong to Taifa New Energy, and any changes may be made without prior notice.
If you need specific model parameters and related technical solutions for biogas generator sets, please contact us by phone at 135 1515 5003 (same WeChat number)
